Our mini lidar module's ultra-short focal length and planar optical-mechanic design is the best in the industry. The visible red laser dot provides visual reference in machine and human vision in application developments such as 3D / cubic dimension measurements and photogrammetry image utilities, etc.. It is suitable for embedded in various mobile vehicles, such as mobile phones, flat plates, hand tools, sweeping robots, unmanned vehicles, etc., as the core component for distance measurement or navigation obstacle avoidance functions.

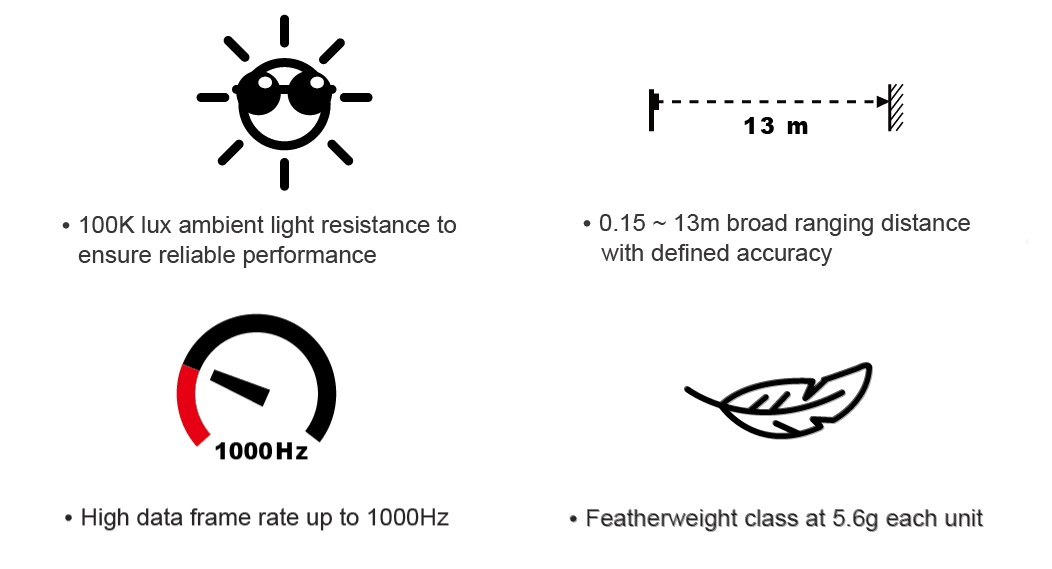

Product Features of Mini Lidar
Unique Features Derived from Wiseome's Patented Design
the thinnest optical structure < 6mm in the industry
the longest ranging distance 20m in the industry
collimated visible beam
powerful anti-obstacle interference
the most accurate "mm" range in the industry
Mini LidarLaser Measurement Modules
Choose a laser rangefinder module that matches your application:
Mini Lidar - Embedded
Compact, energy-efficient laser rangefinder modules ideally suited for integration in portable electro-optical devices. Click 'Learn More' to get product specs and download product datasheet.
MiniLiDAR is designed with optical phase distance measurement to capture distance data.
Quick Theory of Phase Measure
The laser amplitude is modulated with frequency fm, traveling through a distance D to which the target is located. A tiny part of the light travels back to the sensor with a "phase difference ∆𝝋" by scattering from the target surface. The "phase difference ∆𝝋" is related to D directly by the following equation:
Therefore, the distance D can be calculated by calculating the phase difference by the phase-decomposing circuit and algorithm.
The Miniaturization of Optical Structure
For applications embedded in mobile phones, the Mini Lidar opto-mechanical design team has adopted two main methods to reduce the size of the opto-mechanics: 1. Abandon the traditional light-receiving component packaging and use a genuine COB process. 2. Redesign the light-receiving lens to shorten the focal length of the lens while maintaining the light-receiving ability.
The first-generation embedded iPin Ruler, which was launched in 2018 by Wiseome Inc., is equipped in the CAT phone model S61. It adopted triangular distance measurement technology and has a measurement range of 8 meters, which was the industry's best performance.
The second-generation embedded laser ranging module Mini Lidar, which was launched in the early 2021, adopted iTOF phase ranging technology. The measurement range has been advanced to 20 meters, and the accuracy has been improved to several millimetres, truly realizing the professional ranging capabilities on mobile phones.
Contact Us For More Information
Discover the smallest lidar distance sensor module. Discover the smallest ToF lidar distance sensor module. If you require information on our Arduino distance sensor integration or Raspberry Pi distance sensor integration, please contact us today.
